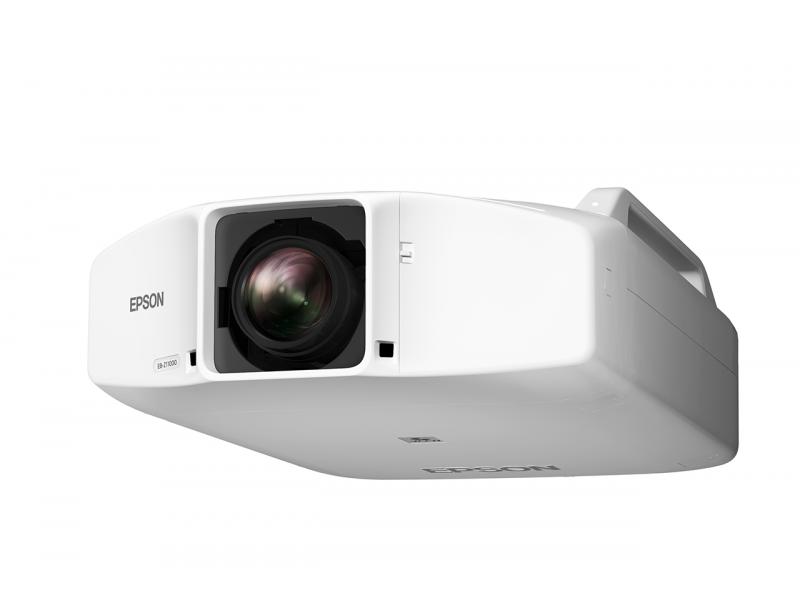

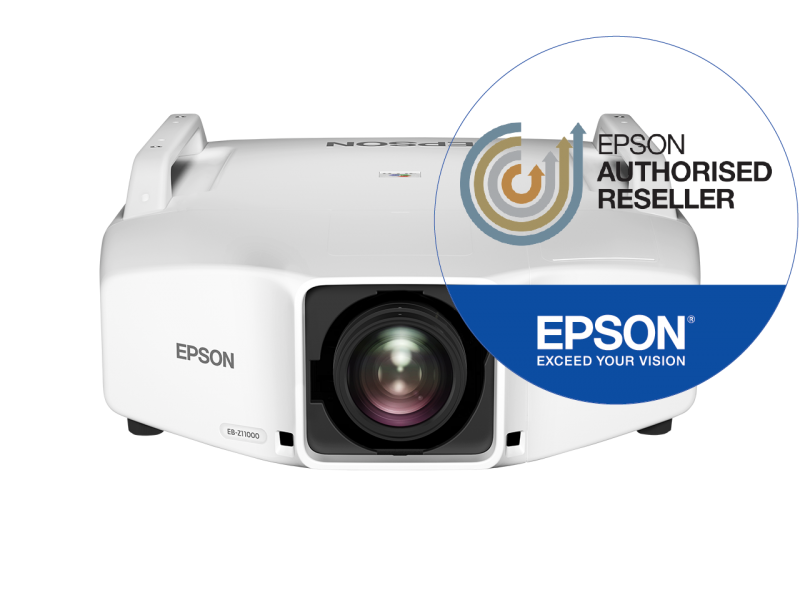

EB-Z9800W

The white EB-Z9800W is an impressive and versatile installation projector, with rental applications, that displays images with 8300 lumens brightness and in WXGA resolution, Able to project portrait aspect images for digital signage, the EB-Z9800W has a flexible installation angle, lens shift for off-centre positioning and plenty of calibration options, with optional Wi-Fi and HDBaseT connectivity.

Clear images and 3LCD technology
At 8300 lumens the EB-Z9800W is an ultra-bright WXGA resolution projector. This projector benefits from Epson’s 3LCD technology, which ensures high-quality images with equally high White and Colour Light Output for vivid colours and bright images, even in daylight, and three times brighter colours than competitive projectors1.

Perfect for large venues
Museums, auditoriums and corporate environments can benefit from the EB-Z9800W's large projected image, ideal for making a big impact.

Portrait projection
Able to project portrait aspect images, the EB-Z9800W is ideal for digital signage. Welcome to a whole new way of seeing things; portrait mode is also useful when a venue or event, such a fashion show, doesn't lend itself to landscape projection.

Easy set-up
As well as a flexible installation angle and lens shift for off-centre positioning, the EB-Z9800W includes plenty of calibration options such as edge blending, test patterns and Epson’s Super Resolution feature.

Connectivity
The EB-Z9800W includes HDBaseT, which allows up to five connections in one. Optional Wi-Fi is also included for extra flexibility.

Short-throw capability
Great news for auditoriums and lecture theatres; a new and exclusive LU02 short throw lens allows this projector to be positioned closer to the screen.

Key Features
•High-brightness:Ultra-bright at 8300 lumens
•Flexible:Choose different installation angles
•3LCD technology:For vivid colours and bright images
•Connectivity:HDBaseT and optional Wi-Fi connectivity
•Portrait projection:When landscape isn't suitable

Technical specification:

Projection System  3LCD Technology, RGB liquid crystal shutter
LCD Panel  1.03 inch with C2 Fine

Colour Light Output  8,300 Lumen-7,100 Lumen (economy)
White Light Output  8,300 Lumen - 7,100 Lumen (economy)
Portrait Colour Light Output  8,100 lm
Portrait White Light Output  8,100 lm
Resolution  WXGA, 1280x800, 16:10
Aspect Ratio  16:10
Contrast Ratio  15,000 : 1
Lamp  380 W, 3,000 h durability, 4,000 h durability (economy mode)
Lamp (portrait mode)  1,000 Hours Durability, 304 Watt
Keystone Correction  Manual vertical: ± 30 °, Manual horizontal ± 30 °

Optical
Projection Ratio  1.65 - 2.65:1
Zoom  Motorized, Factor: 1 - 1.61
Lens  Optical
Lens Shift  Motorized - Vertical ± 56 %, horizontal ± 19 %
Projection Size  60 inches - 500 inches
Projection Distance Wide  2 m - 17,2 m
Projection Distance Tele  3,3 m - 27,8 m
Projection Lens F Number  1.65 - 2.51
Focal Distance  36 mm - 57.5 mm
Focus  Motorized

Connectivity
Interfaces  HDBaseT, S-Video in, BNC in (6x), Component in, Composite in, HDMI in, DVI in, VGA out, VGA in, Wireless LAN IEEE 802.11b/g/n (optional), WLAN, RS-232C, USB 2.0 Type B (Service Only), USB 1.1 Type A

Advanced Features
Security  Kensington lock, Security cable hole
Video Colour Modes  Dynamic, Photo, Presentation, sRGB, Theatre, DICOM SIM

General
Energy Use 809 Watt, 721 Watt (economy), 0.37 Watt (standby)
Supply Voltage  AC 100 V - 240 V,50 Hz - 60 Hz
Product dimensions  741‎ x 534 x 197 mm (Width x Depth x Height)
Product weight  25 kg
Noise Level  Normal: 40 dB (A) - Economy: 35 dB (A)
Temperature  Storage -10° C - 60° C
Humidity  Operation 20% - 80%, Storage 10% - 90%
Included Software  EasyMP Monitor, EasyMP Multi PC Projection, EasyMP Network Projection
Options  Document camera, Quick wireless USB key, Wireless LAN unit
What's in the box  Computer cable, HDMI Cable Clamp, Power cable, Remote control incl. batteries, User's Manual Set
